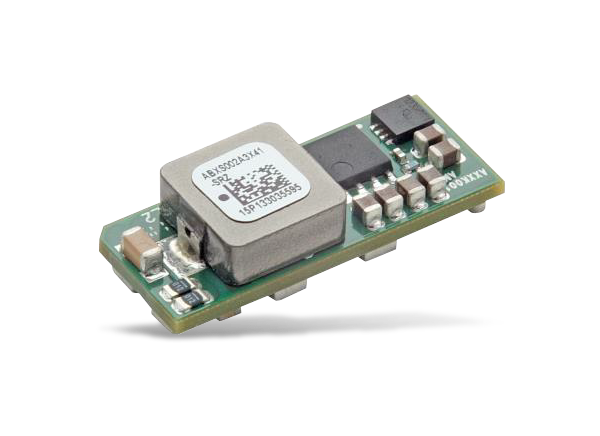

ABB ABXS 65W/130W Non-Isolated Boost Converters

ABB ABXS 65W and 130W Non-Isolated Boost Converters are optimized for conduction-cooled applications. These modules can operate at an input voltage of 8VDC to 16VDC with an adjustable 16VDC to 34VDC output. These DC-DC power modules feature a remote On/Off, over current protection, and over-temperature protection. The converters also include the Tunable Loop™ feature that allows the user to optimize the dynamic response of the converter to match the load with a reduced amount of output capacitance. Applications include industrial equipment, distributed power architectures, and telecommunications equipment.


  • Compliant to RoHS II EU “Directive 2011/65/EU”
  • Compliant to IPC-9592, Category 2, Class II
  • Compatible in a Pb-free or SnPb reflow environment (Z versions)
  • Compliant to REACH Directive (EC) No 1907/2006
  • Wide 8VDC to 16VDC input voltage range
  • Output voltage programmable from 16VDC to 34VDC via an external resistor
  • Tunable Loop™ to optimize dynamic output voltage response
  • Power good signal
  • Output overcurrent protection (non-latching)
  • Over-temperature protection
  • Remote on/off
  • Ability to sink and source current
  • Supports pre-biased output
  • Optimized for conduction-cooled applications
  • Small size measuring 27.9mm x 11.4mm x 8.5mm (1.1" x 0.45" x 0.33") maximum
  • Wide -40°C to +85°C operating temperature range


  • Industrial equipment
  • Distributed power architectures
  • Telecommunications equipment
Published: 2016-11-29 | Updated: 2022-03-11
