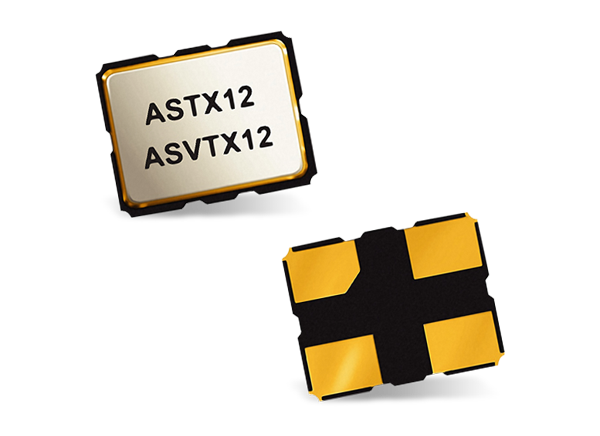

Abracon ASVTX VCTCXO
Abracon ASVTX Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO) comes in a small package size of 3.2mm x 2.5mm x 0.9mm (L x W x H). This module features a 38.4MHz frequency, 2.5PPM frequency stability, and a -40°C to +85°C operating temperature range. Applications for Abracon ASVTX VCTCXO include mobile phones, mobile communications equipment, portable radio equipment, music players, and more.
Features
- Small package size
- 38.4MHz frequency
- 2.5PPM frequency stability
- Clipped sine wave waveform
- Hermetically sealed
- Low 1.5mA current consumption at 19.68MHz
- 3.2mm x 2.5mm x 0.9mm dimensions (L x W x H)
- -40°C to +85°C operating temperature range
- Lead free and RoHS/RoHS II compliant
Applications
- Mobile phones
- Mobile communications equipment
- Portable radio equipment and music players
- Phase-locked loops (PLLs)
