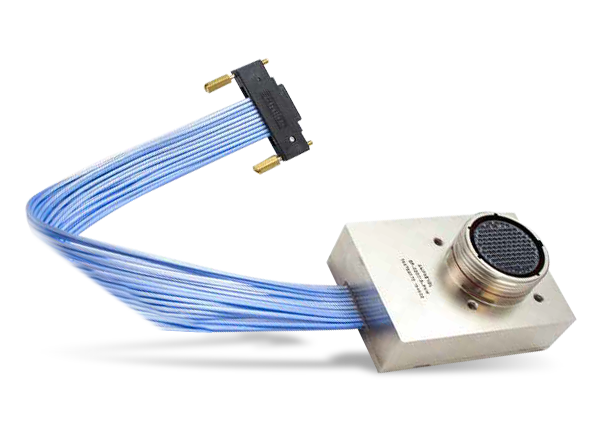

Amphenol Aerospace Octal 1000BASE-T to SGMII Converters are a rugged, flexible expression of SerDes technology, supporting eight ports of IEEE 802.3ab-compliant, Gigabit Ethernet. On its 1000 BASE-T copper interface, this naturally convection-cooled solution offers (100) size 22 contacts in a D38999 shell size 23 design. On its SGMII interface, the Amphenol Aerospace converter modules feature a Samtec Q series® high-speed cable assembly. Together, these octal media converters consume less than 5W power, requiring a 5V power connection in the Samtec connector.
Converts 1000BASE-T to SGMII
IEEE 802.3ab compliant
Low-power consumption, <5W
1000BASE-T copper interface
D38999 shell size 23
(100) size 22 contacts
Samtec Q series® high-speed cable assembly
Natural convection cooled (no fan or cold plate required)
-40°C to +85°C operating temperature (-50°C to +125°C storage)
8 Ports - Gigabit Ethernet
Amphenol Aerospace High-Speed Media Converters
Converter modules designed for rugged military/commercial applications on land, air, and sea.
