Amphenol LTW FICX Waterproof Circular Connectors

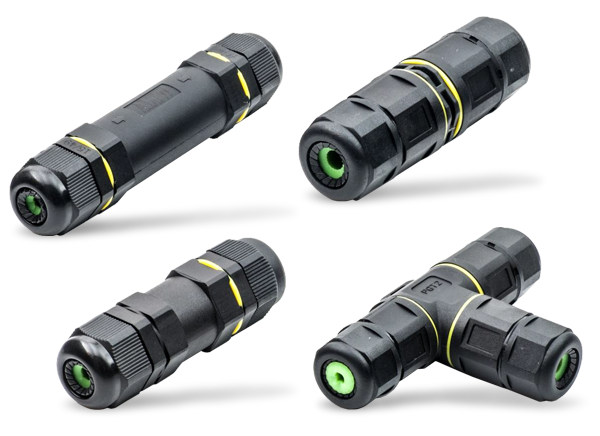

Amphenol LTW FICX Waterproof Circular Connectors are IP68 rated and can accommodate a wide range of wire and cable outer diameters. These FICX connectors offer quick and easy installation and feature color identification for sealing as well as an easy-grip design. Amphenol LTW FICX Waterproof Connectors have end-barrier screw-type or screw-type terminal block housings and are available in three styles: I tube, XI tube, and T tube.

Features

  • IP68 waterproof rating (50m, 24hrs)
  • 720hrs in-house UV resistance test
  • Accommodate a wide range of wire and cable OD
  • Quick and easy installation
  • Color identification for sealing
  • Easy-grip design
  • RoHS compliant

Specifications

  • 2 to 4 positions
  • 15A to 30A current rating range
  • 450VAC/DC voltage rating
  • -40°C to +105°C operating temperature range
  • 18AWG to 14AWG wire range
  • Black, PA6+GF gland nut and terminal block housing
  • Black, PA66 gland body or pipe
  • Silicon gaskets and sleeve
  • Nickel-plated brass contacts
  • Nickel-plated stainless steel screw
  • Cable OD and color options
    • 4.5mm to 6.5mm, blue
    • 6.6mm to 8.5mm, yellow
    • 8.6mm to 10.5mm, green
    • 10.6mm to 12.5mm, red
