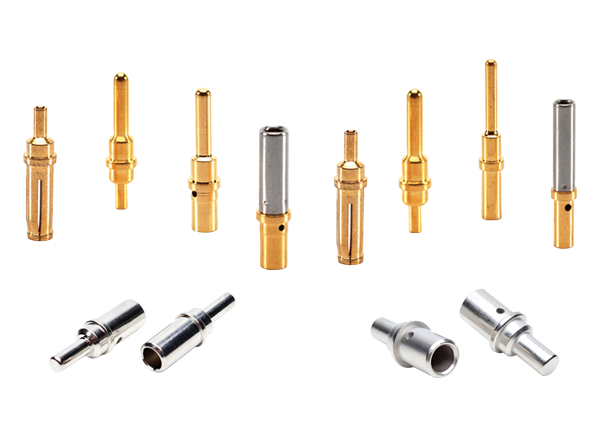

Amphenol Sine Systems A Series™ Contacts
Amphenol Sine Systems A Series™ Contacts are readily available in a wide variety of material and plating combinations with a number of different contact types. These cost-effective, precision connector contacts are designed for increased reliability.
Features
- Machined contacts
- Designed for heavy-duty applications
- Solid contacts that accommodate greater wire sizes
- 24AWG to 4AWG (0.25mm2 to 25mm2) wire range
- Available in sizes 4, 8, 12, 16, and 20, in both pin and socket
- Current ratings up to 100A
- Copper alloy, nickel plated
- Gold-plating options available
- Stamped and formed contacts
- Precision-engineered stamped and formed design provides cost-effective wire processing, while ensuring high-reliability conductor termination and performance
- 22AWG to 10AWG (0.35mm2 to 6.0mm2) wire range
- Available in sizes 12, 16, and 20, in both pin and socket
- Current ratings up to 25A
- Copper alloy, nickel plated
- Gold-plating options available
Applications
- Heavy equipment
- Agricultural
- Automotive
- Military
- Alternative energy
Related Connectors
Amphenol Sine Systems A Series™ Connectors
Heavy-duty, multi-pin plastic and metal connectors designed to serve many industries.
