Analog Devices Inc. ADRF5300 Reflective SPDT Switches

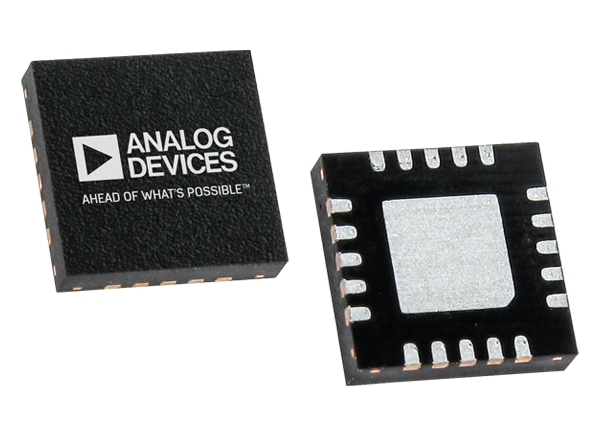

Analog Devices Inc. ADRF5300 Reflective SPDT Switches are manufactured in the silicon process and developed for 5G applications ranging from 24GHz to 32GHz. The ADRF5300 features a low insertion loss of 1.1dB, a high isolation of 38dB, and an RF input power handling capability of 28dBm average and 36dBm peak.
The ADI ADRF5300 Reflective SPDT Switches integrates a negative voltage generator (NVG) to operate with a single positive supply of 3.3V (VDD) applied to the VDD pin. The ADRF5300 enables CMOS- and low voltage transistor to transistor logic (LVTTL)-compatible controls.
The ADRF5300 Reflective SPDT Switches operates from -40°C to +105°C and is available in a 20-terminal, 3mm × 3mm, RoHS-compliant, land grid array (LGA) package.
Features
- Reflective design
- 1.1dB Low insertion loss
- 38dB High isolation
- High input linearity
- 37dBm P0.1dB
- 65dBm IP3
- High RF input power handling
- 28dBm average
- 36dBm peak
- 3.3V single-supply operation
- Internal negative voltage generator
- 70ns RF settling time (0.1dB final RF output)
- 20-terminal, 3mm × 3mm, RoHS-compliant, land grid array package
Applications
- Industrial scanner
- Test instrumentation
- 5G Millimeter wave cellular infrastructure
- Military radios, radars, electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
Associated Eval Board
Analog Devices Inc. ADRF5300-EVALZ Evaluation Board
A platform for evaluating the ADRF5300 Reflective SPDT Switch performance.
FUNCTIONAL BLOCK DIAGRAM
