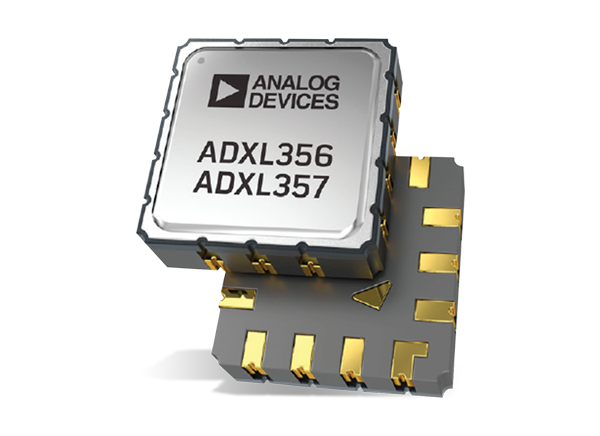

Analog Devices Inc. ADXL356/ADXL357 3-Axis MEMS Accelerometers
Analog Devices ADXL356/ADXL357 3-Axis MEMS Accelerometers are analog (ADXL356) or digital output (ADXL357) MEMS accelerometers. These devices offer low noise density, low 0g offset drift, low power with selectable measurement ranges. The ADXL356B supports the ±10g and ±20g ranges, the ADXL356C supports the ±10g and ±40g ranges, and the ADXL357 supports the ±10.24g, ±20.48g, and ±40.96g ranges.
Features
- Hermetic package offers excellent long-term stability
- 0g offset vs. temperature (all axes): 0.75mg/°C maximum
- Ultra-low noise density (all axes): 80μg/√Hz
- Low power, VSUPPLY (LDO enabled)
- Measurement mode: 150μA
- Standby mode: 21μA
- User-adjustable analog output bandwidth
- Integrated temperature sensor
- Voltage range options
- VSUPPLY with internal regulators: 2.25V to 3.6V
- V1P8ANA, V1P8DIG with internal low dropout (LDO) regulator bypassed: 1.8V typical ± 10%
- 14-terminal, 6.0mm×5.6mm×2.05mm, LCC package, 0.26 grams
- ADXL356-EP supports defense and aerospace applications (AQEC standard)
- Military temperature range: −55°C to +125°C
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Product change notification
- Qualification data available on request
- V62/18610 DSCC Drawing Number
Applications
- Inertial measurement units (IMUs)/altitude and heading reference systems (AHRS)
- Platform stabilization systems
- Structural health monitoring
- Seismic imaging
- Tilt sensing
- Robotics
- Condition monitoring
Associated Product
Analog Devices Inc. ADXL35x Accelerometers
Performs vibration measurement for the early detection of structural defects via WSNs.
Analog Devices Inc. ADXL354/ADXL355 3-Axis MEMS Accelerometers
Offers low noise density, low 0g offset drift, low power with selectable measurement ranges.
