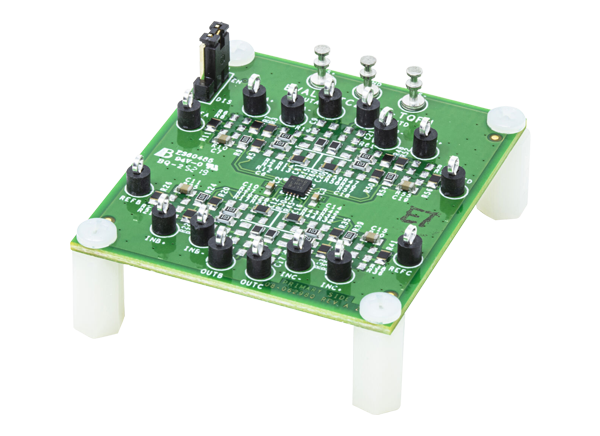

Analog Devices Inc. Evaluation Board for the LTC2065
Analog Devices Inc. Evaluation Board for the LTC2065 evaluates the LTC2065 16-lead, quad-channel, operational amplifier (op-amp). The board uses a gain 2 configuration with a low-pass filter at the non-inverting input with a cutoff frequency of 480Hz. This passband is sufficient for most input signals because of the slew rate limitation of the device.
Features
- Fully featured evaluation board for the LTC2065
- Enables efficient prototyping
- User-defined circuit configuration
- Simplified connection to test equipment and other circuits
Related Products
Analog Devices Inc. LTC2065 Zero-Drift Operational Amplifiers
20kHz amplifiers that offer 2µA supply current and low bias current with low power.
