Analog Devices Inc. LTC2947 Demo Board DC2826A

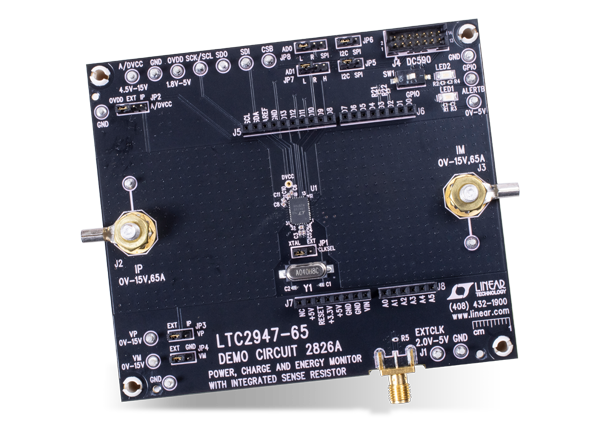

Analog Devices Inc. LTC2947 Demo Board DC2826A is a demonstration and evaluation platform for the LTC2947-65 Power and Energy Monitor IC. The LTC2947-65 features an integrated internal sense resistor supporting up to ±65A. Three internal No Latency Δ∑™ ADCs ensure accurate measurement of voltage and current, while a high bandwidth analog multiplication of voltage and current provides accurate power measurement in a wide range of applications. The DC2826A as designed to be connected to the Linduino® One DC2026C Demonstration Board or the DC590B USB Serial Controller Board, and controlled through the Linduino™-Sketch or QuikEval™ software. All configuration and measurement data can be written and read through the QuikEval interface, which provides a convenient way to evaluate the LTC2947-65.
Features
- Demonstration circuit for LTC2947-65 65A Power/Energy Monitor with Integrated Sense Resistor
- 14-pin QuikEval™ connector provides direct connection to Linduino One DC2026C Demonstration Board or DC590B USB Serial Controller Board
- Supports high side and low side sensing of positive and negative currents
- Auto detected by QuikEval Software, which provides an easy to use Graphic User Interface (GUI)
Applicable Products
Analog Devices Inc. LTC2947 30A Power/Energy Monitors
Feature an internal sense resistor supporting up to ±30A with three internal No Latency Δ∑™ ADCs.
Required for Use
Analog Devices Inc. Linduino® One (DC2026)
Arduino Uno-compatible Demonstration Board designed to interface with QuikEval™ Evaluation Boards.
Analog Devices Inc. USB Serial Controller Demo Board (DC590B)
Designed to work with Linear Technology's family of QuikEval™ demonstration boards.
Hardware Bench Setup
