Analog Devices Inc. EVAL-ADIN1200 Evaluation Board

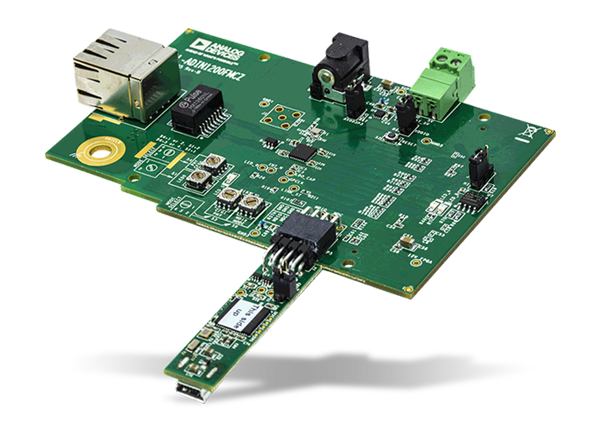

Analog Devices Inc. EVAL-ADIN1200 Evaluation Board allows simplified evaluation of the ADIN1200 industrial, low power 10Mbps and 100Mbps Ethernet physical layer (PHY). The EVAL-ADIN1200FMCZ is powered by a single, external 5V supply rail, supplied by the EXT_5V connector or a P4 plug. All chip supplies are regulated from the 5V rail providing supply rails required for AVDD_3P3 and VDDIO.
Features
- FMC connector for MII interface, MDIO signals, and status signals
- Accessible, surface-mount configuration resistors and dial switches
- Operates from a single, external, 5V supply
