Analog Devices Inc. CN0385 Multichannel Data Acquisition System w/PGIA

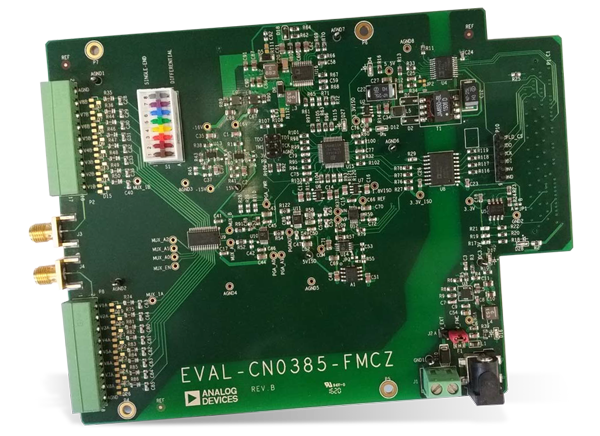

Analog Devices Inc. EVAL-CN0385-FMCZ Evaluation Board is an isolated, multichannel data acquisition system, compatible with standard industrial signal levels. The components are specifically selected to optimize settling time between samples, providing 18-bit performance at channel switching rates up to approximately 750kHz. The circuit can process eight gain-independent channels and is compatible with single-ended and differential input signals.

Features

Multichannel isolated data acquisition system
Industrial signal levels

18-bit, 2MSPS conversion
750kHz channel switching rate

Required Equipment

PC with a USB port and Windows XP or Windows Vista (32-bit), or Windows 7 (32-bit)
EVAL-CN0385-FMCZ circuit evaluation board
EVAL-SDP-CH1Z SDP-H1 controller board
CN-0385 Evaluation Software

5V_DC to 12V_DC power supply or wall wart (9V wall wart included with EVAL-CN0385-FMCZ board)
USB to micro-USB cable
Low distortion, low output impedance signal generator to provide ±10V output
±10V output provided by low noise, high-precision DC supply
