Analog Devices Inc. HMC8411 Low Noise Amplifier
Analog Devices Inc. HMC8411 Low Noise Amplifier is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low-noise wideband amplifier. The device operates from 0.01GHz to 10GHz. The HMC8411 has a typical gain of 15.5dB, a 1.7dB typical noise figure, and a typical output third-order intercept (OIP3) of 34dBm. It requires only 55mA from a 5V supply voltage.
Features
- Low noise figure: 1.7dB typical
- Single positive supply (self biased)
- High gain: 15.5dB typical
- High OIP3: 34dBm typical

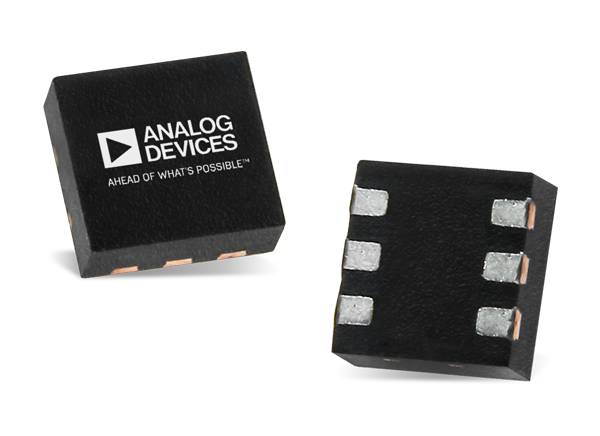

- 6-lead, 2mm x 2mm LFCSP
- RoHS compliant
Applications
- Test instrumentation
- Military communications
Technical Articles
- Select the Best Power Solution for RF Signal Chain Phase Noise Performance
Proper choice of power modules is paramount and can lead to as much as a 10dB improvement of phase noise at 10kHz offset so knowing the correct power solution to choose is very important for optimizing your RF signal chain.
Development Tools
Analog Devices Inc. EVAL-HMC8411 Evaluation Board
Demonstration and development platform for the HMC8411 0.01GHz to 10GHz Low Noise Amplifier.
Block Diagram
Published: 2019-08-20
| Updated: 2023-04-12
