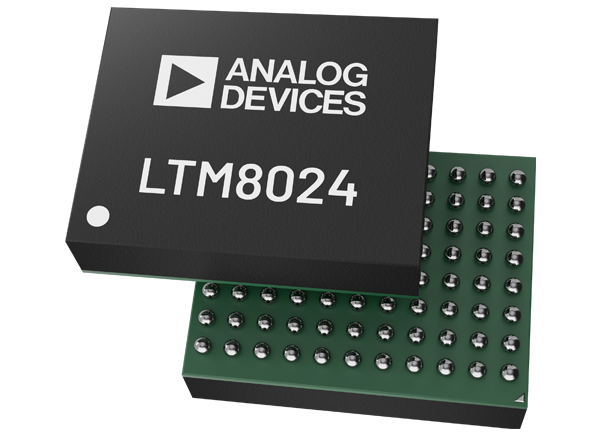

Analog Devices Inc. LTM8024 40VIN Silent Switcher µModule Regulator
Analog Devices Inc. LTM8024 Step-Down Silent Switcher µModule® Regulator is ideal for automotive battery regulation, power for portable products, distributed supply regulation, and industrial supplies. The 40VIN, dual 3.5A or single 7A step-down Silent Switcher architecture minimizes electromagnetic interference (EMI) while delivering high efficiency at frequencies up to 3MHz. LTM8024 supports output voltages from 0.8V to 8V, and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. The LTM8024 contains current mode controllers, power switching elements, power inductors and a modest amount of input and output capacitance. The LTM8024 is a fixed frequency PWM regulator. The switching frequency is set by simply connecting the appropriate resistor value from the RT pin to GND.
Features
- 2x complete step-down switching power supplies
- Low noise Silent Switcher® architecture
- CISPR22 Class B-compliant
- 3V to 40V wide input voltage range
- 0.8V to 8V wide output voltage range
- 90uA quiescent current
- 3.5A continuous output current per channel at 12VIN, 3.3VOUT, TA = 80°C
- Multiphase parallel operation to increase current
- 200kHz to 3MHz selectable switching frequency
- Thermally enhanced 9mm × 11.25mm × 3.32mm package size
- -40°C to +125°C operating temperature range
- RoHS compliant
Applications
- Automotive battery regulation
- Power for portable products
- Distributed supply regulation
- Industrial supplies
Related Products
Analog Devices Inc. LTM4626 & LTM4638 µModule Regulators
Complete step-down DC-DC switching mode power regulators in a tiny 6.25mm2 BGA package.
Analog Devices Inc. Silent Switcher® Solutions for EMI Compliance
Delivers up to 95% efficiency at 2MHz & ultra-low EMI/EMC emissions.
Associated Development Tool
Analog Devices Inc. LTM8024 Demo Board DC1868A
Designed to deliver dual 5V/3A and 3.3V/3A outputs from a 7V to 40V input.
Block Diagram
