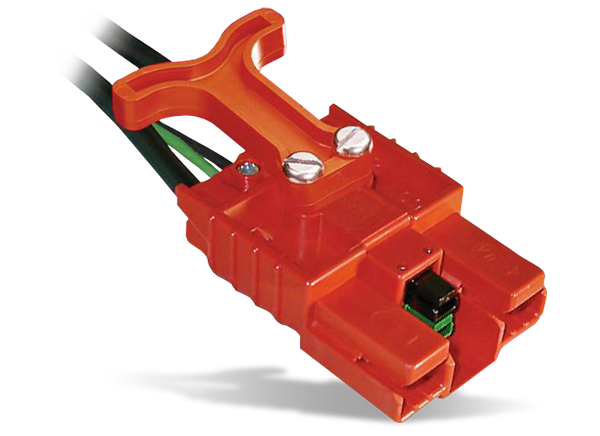

Anderson Power Products SBE80 / SBO60 Connectors build on the capability of two-pole SB series connectors by offering up to eight auxiliary power / signal contacts along with an IEC 60950 touch-safe housing. The touch-safe interface of the APP SBE80 / SBO60 series minimizes potential contact with live circuits. The center of the main connector features a connector holder for two PP15-45 connectors, two PPMX connectors, or a 1x4 auxiliary connector. The silver-plated wire contacts enable UL-rated currents up to 80A per pole.
Minimizes potential contact with live circuits per IEC 60950
Enables intelligent power switching, CAN, and interlock loop circuitry, as well as power up to 20A per pole
Up to 8 last-mate, first-break auxiliaries
Silver-plated wire contacts up to #4 (25mm2)
Allows UL-rated currents up to 80A per pole
Anderson Power Products E-Mobility Solutions
Designed to bring power, or power and signaling, to and from e-mobility equipment.
