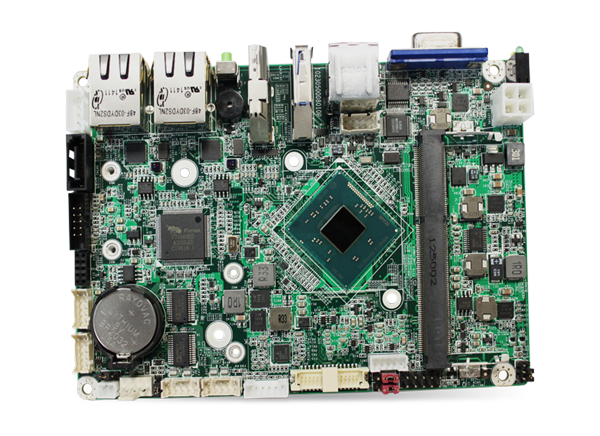

Arbor Technology EmCORE-i2305 3.5" Compact Board

ARBOR Technology EmCORE-i2305 Intel^® Celeron^® J1900 3.5" Compact Board supports the Intel Atom™ processor E3800 family and the Celeron processor N-series. The EmCORE-i2305 3.5" compact board features a dual integrated gigabit Ethernet port, a -20 to 70°C extended operating temperature, and soldered onboard eMMC (optional). Additionally, the ARBOR Technology EmCORE-i2305 Board supports dual independent displays and LVDS, analog RGB, and HDMI ports.

Features

Support Intel Atom processor E3800 family and Celeron processor
Dual gigabit Ethernet ports
LVDS, analog RGB port, and HDMI port
Support dual independent displays

Soldered onboard eMMC (OEM request) (E3800 family SKU only)
Operating temperature range
- -20 to +70°C Extended
- -40 to +85°C (WT series)

Specifications

Soldered onboard Intel Atom processor E3800 family E3825 1.33GHz/ E3845 1.91GHz or Intel Celeron processor N2807 1.58GHz/ N2930 1.83GHz
1 x DDR3L SO-DIMM socket, supporting up to 8GB 1333/1660 MT/s SDRAM
Insyde BIOS
1-255 levels reset watchdog timer
Fintek F71869ED chipset
1 x RS-232, 1 x RS-232/485 selectable serial port
6-pin wafer connector for PS/2 keyboard/mouse via Y-cable
Expansion
- 1 x Mini-card socket
- 1 x micro-SDXC socket (E3800 family only, supports SDXC card SD 3.0 only)
- 2 x I²C ports (OEM request, E3800 family processor only)

4 x USB 2.0 ports
1 x USB 3.0/2.0 ports
Storage
- 1 x Serial ATA ports with 300MB/s HDD transfer rate
- 1 x mSATA socket
- 4GB/8GB/16GB eMMC 4.5 (OEM request, E3800 family processor only)
2 x Realtek^® RTL8111 PCIe GbE controllers Ethernet chipset
8-bit Programmable digital I/O
Realtek ALC662 5.1 channel HD audio CODEC, mic-in/line-in/line-out audio interface
146 x 102mm (5.7” x 4.0”) dimension
Operating humidity temperature
- 10 to 95% at +70°C (non-condensing)
- 10 to 95% at +85°C (non-condensing, WT-series)
