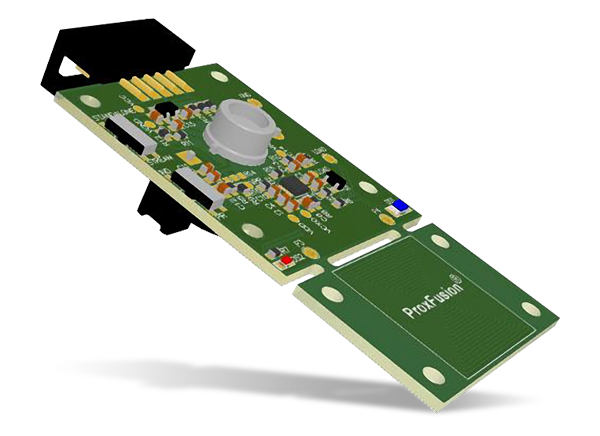

Azoteq IQS680EV02 Evaluation Board
Azoteq IQS680EV02 Evaluation Board is designed for the evaluation of the IQS680 ProxFusion® Proximity Sensor. This board features I2C- and USB-type interfaces and operates at a 3.3V supply voltage. The IQS680 proximity sensor offers capacitive, inductive, and pyroelectric infrared radial (PIR) sensing. The IQS680EV02 Evaluation Board can be used in a standalone mode with LED feedback or by being connected by the CCT210 USB Dongle Programmer (not included) to a PC.
Features
- PIR sensing (movement sensing)
- Capacitive sensing
- Inductive sensing (requires writing to the EEPROM)
- Sample coil/touchpad included
- I2C- and USB-type interfaces
- Operates at a 3.3V supply voltage
Applications
- Under cabinet lighting (UCL)
- Battery-powered PIR sensors solutions
- Smart lights
- Night lights
- Movement detection
- White goods and appliances
- Human interface devices
- Movement activated backlighting
IQS680 Evaluation Board Overview
Additional Resources
Associated Sensor
Azoteq IQS680 ProxFusion® Proximity Sensor
Features dual channel capacitive proximity, PIR sensor, and metal detection capabilities.
Related Programmer
Azoteq CT210A USB Dongle Programmer
Connects Azoteq evaluation kits to a PC, enabling demonstration and programming of the target ICs.
Published: 2018-05-16
| Updated: 2023-01-20
