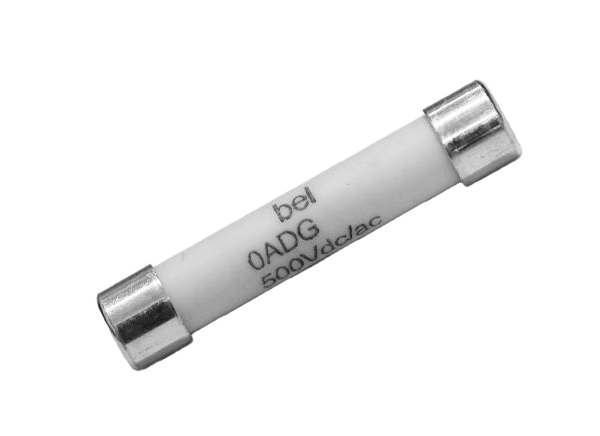

Bel Fuse 0ADGX High In-Rush Fuses

Bel Fuse 0ADGX High In-Rush Fuses are 500VAC/DC-rated high in-rush fuses in a 6mm x 32mm ceramic tube package. Bel Fuse 0ADGX offers high I2T withstand and high breaking capacity for high-energy applications. These high in-rush fuses are ideal for use in industrial power supplies and electric vehicle (EV)/hybrid electric vehicle (HEV) charging modules.


  • High I2T withstand
  • High in-rush current
  • High breaking capacity for high-energy applications
  • Full compliance with EU Directive 2011/65/EU and amending directive 2015/863
  • Lead-free


  • Industrial power supplies
  • Charging modules for EV/HEV


  • 500VAC/DC voltage rating
  • 8A to 30A current rating
  • 2.5mΩ to 15mΩ typical cold resistance
  • 165A2Sec to 2350A2Sec typical pre-arcing I2T
  • -50°C to +125°C operating temperature range
Published: 2021-09-14 | Updated: 2022-03-11
