Signal Transformer / Bel HCTI High Current Toroidal Inductors

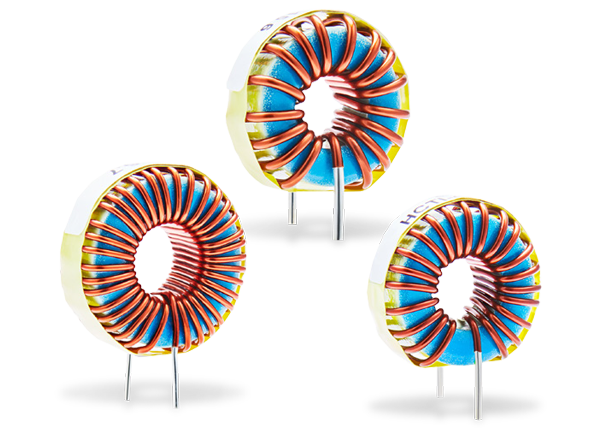

Signal Transformer / Bel HCTI High Current Toroidal Inductors are vertical PCB mounted and feature high-frequency magnetics with a broad inductance and current range. The inductors offer a distributed air gap for high energy storage and are self-shielding for low magnetic radiation. The components are highly efficient with reduced core loss. The HCTI inductors are ideal for SMPS energy storage inductors, EMI/RFI filtering inductors, and DC-DC converter chokes.
Features
- Vertical PC mounting for board layout optimization
- Wide range of inductance and current ratings
- Distributed air gap for high energy storage
- High-efficiency reduced core loss
- Self-shielding for low magnetic radiation
- High current carrying capability
Applications
- SMPS energy storage inductors
- EMI/RFI filtering inductors
- DC-DC converter chokes
Specifications
- -55°C to +105°C operating temperature range
- Leads tinned to within 1/16 of an inch above the mounting plane
- Lead length of 0.50"
- RoHS compliant
Videos
Development Tool
Associated Products
Signal Transformer / Bel HCTC High Current Toroidal Chokes
Designed for suppressing high-frequency electrical noise with high efficiency and reliability.
Signal Transformer / Bel SMD & Toroidal Inductor Design Kits
Inductor sample kits in high current toroidal, multipurpose, or lighting design configurations.
