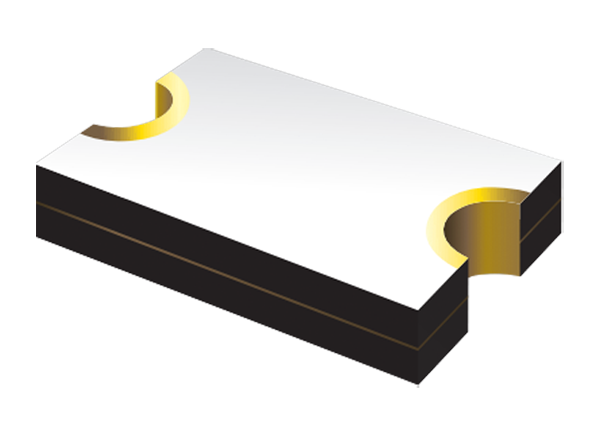

Bourns MF-FSHT PTC Resettable Fuses
Bourns MF-FSHT PTC Resettable Fuses offers a 12V voltage rating, up to 40A Imax current rating, and 0603 footprint size with low profile design. MF-FSHT fuses feature surface mount packaging for automated assembly, a maximum operating temperature rating of +125°C, and low thermal derating factor. The Bourn innovative freeXpansion™ design it utilized, increasing the performance of these fuses. Bourns MF-FSHT PTC Resettable Fuses are ideal for industrial and other demanding applications that require high-working temperatures.
Features
- Surface mount packaging for automated assembly
- 0603 footprint size and low profile for space-constrained mobile applications
- Operating temperature range up to +125°C
- Low thermal derating factor
- Higher hold currents at elevated temperatures
- RoHS compliant
- cUL and TÜV agency recognition
Applications
- Overcurrent surge protection of electronic equipment required to operate at elevated temperatures
- Resettable fault protection for industrial and consumer electronic equipment
Resources
Related Products
Bourns Multifuse® PTC Resettable Fuses
Polymeric or ceramic PTCs in surface-mount, through-hole, or strap-mount configurations.

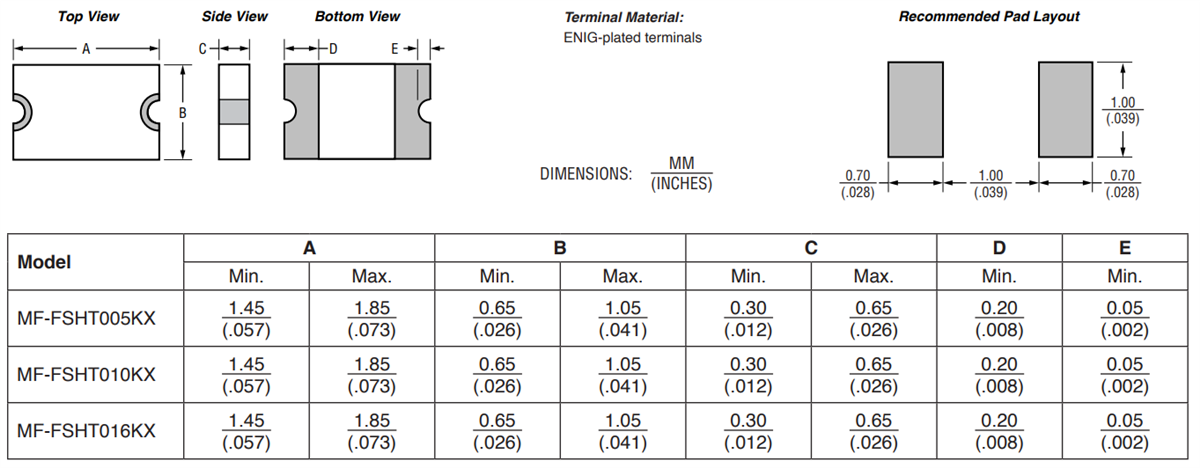

Product Dimensions
