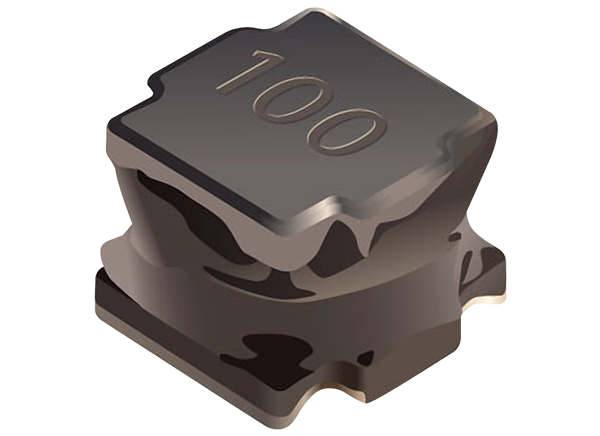

Bourns SRN6045HA Semi-Shielded Power Inductors
Bourns SRN6045HA Semi-Shielded Power Inductors offer a 550nH to 100µH inductance range, 6mΩ to 540mΩ resistance range, and up to 14.5A saturation current. These inductors are AEC-Q200 compliant and feature a high operating temperature range of -55°C to +150°C. SRN6045HA inductors have a magnetic epoxy coating to the perimeter of the inductor winding, which provides effective shielding and releases lower magnetic field radiation compared to non-shielded inductors. Bourns SRN6045HA Semi-Shielded Power Inductors are ideal for DC/DC converters and power supplies in consumer, industrial, and telecom electronics.
Features
- AEC-Q200 compliant
- Semi-shielded construction
- High operating temperature
- RoHS compliant
- Halogen free
Applications
- DC/DC converters
- Power Supplies
- Consumer
- Industrial
- Telecom electronics
Specifications
- 550nH to 100µH inductance range
- 6mΩ to 540mΩ resistance range
- Up to 14.5A saturation current
- 1.2A to 18A saturation current range
- -55°C to +150°C operating temperature range
- 6mm x 6mm x 4.7mm dimensions
