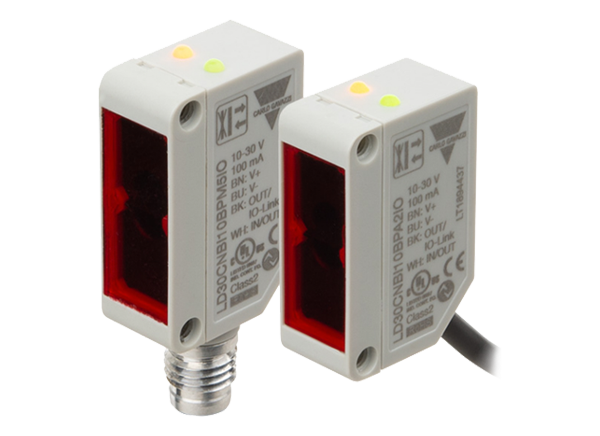

Carlo Gavazzi LD30 IO-Link Time of Flight Photoelectric Sensors
Carlo Gavazzi LD30 IO-Link Time of Flight Photoelectric Sensors offer a main feature that is the background suppression based on the Time of Flight (ToF) sensing principle. With a sensing range of up to 1000mm for both black and white objects, the background suppression has been increased four times compared to previous versions in a very compact housing. The IO-Link connections enable, among other attributes, the read-out of the actual sensing distance. The family consists of 4 sensor types in either stainless steel AISI316L housings, and every sensor can be configured in more than half a million combinations.
Features
- Two separate switching signal channels
- Long-range background suppression ToF (Time of Flight) sensor with IO-Link connection for an adjustable distance of 50 to 1,000mm either by potentiometer or via IO-Link
- Fully configurable via output IO-Link 1.1
- Each switching signal channel can be set as: single point, two point, or window mode
- Temperature alarms and logging functions
- Logic functions: AND, OR, X-OR, and Gated SR-FF
- Timer functions: on-delay, off-delay, one-shot leading or trailing edge delay with values from 1ms up to 32,767min
- Two independent outputs configurable: NPN, PNP, push-pull, external input, or as remote teach function
Applications
- Food and beverage
- Machine tools
- Packaging and wrapping
- Material handling
- Plastic and rubber
Videos
Additional Resources
Published: 2020-12-03
| Updated: 2023-07-25
