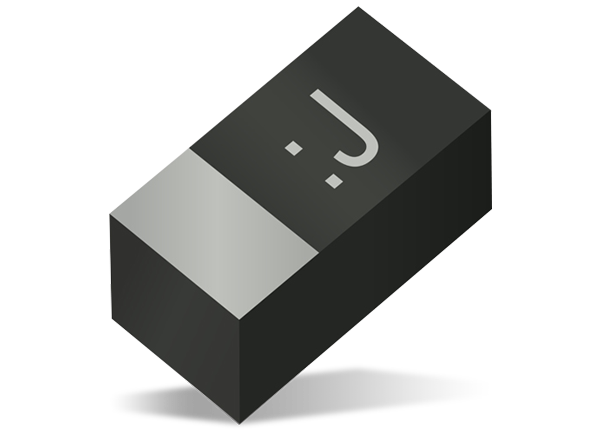

KYOCERA AVX F98 Tantalum Electrolytic Capacitors
KYOCERA AVX F98 Solid Tantalum Electrolytic Capacitors are small, SMD resin-molded chips. The series features high capacitance between 1µF and 100µF and rated voltages between 2.5V and 35V. KYOCERA AVX F98 Capacitors are lead free and RoHS compliant.
Features
- Compliant to the RoHS3 directive 2015/863/EU
- SMD face down design
- Small and low profile
- 100% surge current tested
- Lead-free
- RoHS compliant
Applications
- Smartphones
- Mobile phones
- Wireless modules
- Hearing aids

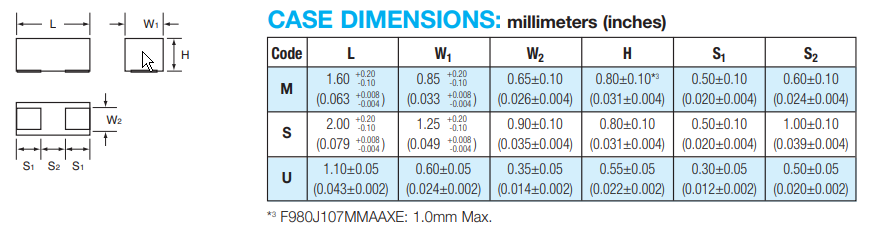

Dimensions
Additional Resources
Published: 2010-08-13
| Updated: 2023-02-07
