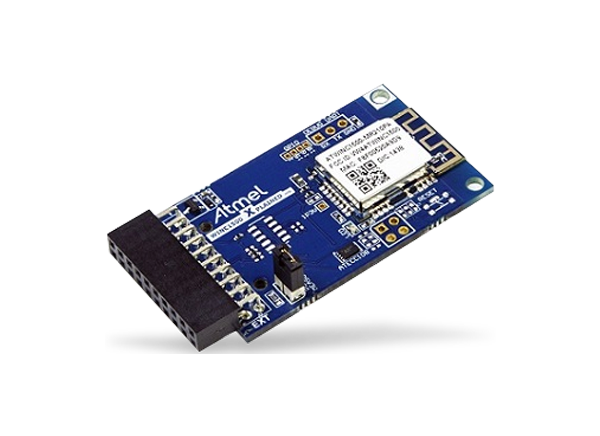

Microchip Technology ATWINC1500 Xplained Pro Extension Board
Microchip ATWINC1500 Xplained Pro Extension Board evaluates the performance of the ATWINC1500 802.11 b/g/n Wi-Fi® Network Controller Module for a low-cost, low-power solution. The Extension Board is designed to work with the Microchip Technology Xplained Pro Evaluation Kits. The Extension Board is supported by the Atmel Studio Integrated Development Environment (IDE) and allows easy access to the features of the ATWINC1500.
Features
- ATWINC1500 module mounted on Xplained Pro Extension board
- Connects to standard Xplained Pro headers on Xplained Pro MCU board
- ATECC508 CryptoAuthentication device connected to host MCU
- Supported with application examples through Atmel gallery
Required for Use
Microchip Technology Xplained Pro Evaluation Kits
A platform consisting of MCU boards and extension boards to develop Atmel MCUs.
Supported Devices
Microchip Technology ATWINC15x0 SmartConnect IoT Modules
Specifically optimised for low-power IoT applications and a small form factor (21.7x14.7x2.1mm).
On The Board
Microchip Technology ATECC508A CryptoAuthentication™ Devices
Crypto engine authentication devices with highly secure hardware-based key storage.
Board Layout
