TSM-106-01-T-DV-A

Name: Samtec TSM-106-01-T-DV-A
Brand: Samtec
SKU: 200-TSM10601TDVA
Price: 541.35 HUF
Availability: InStock

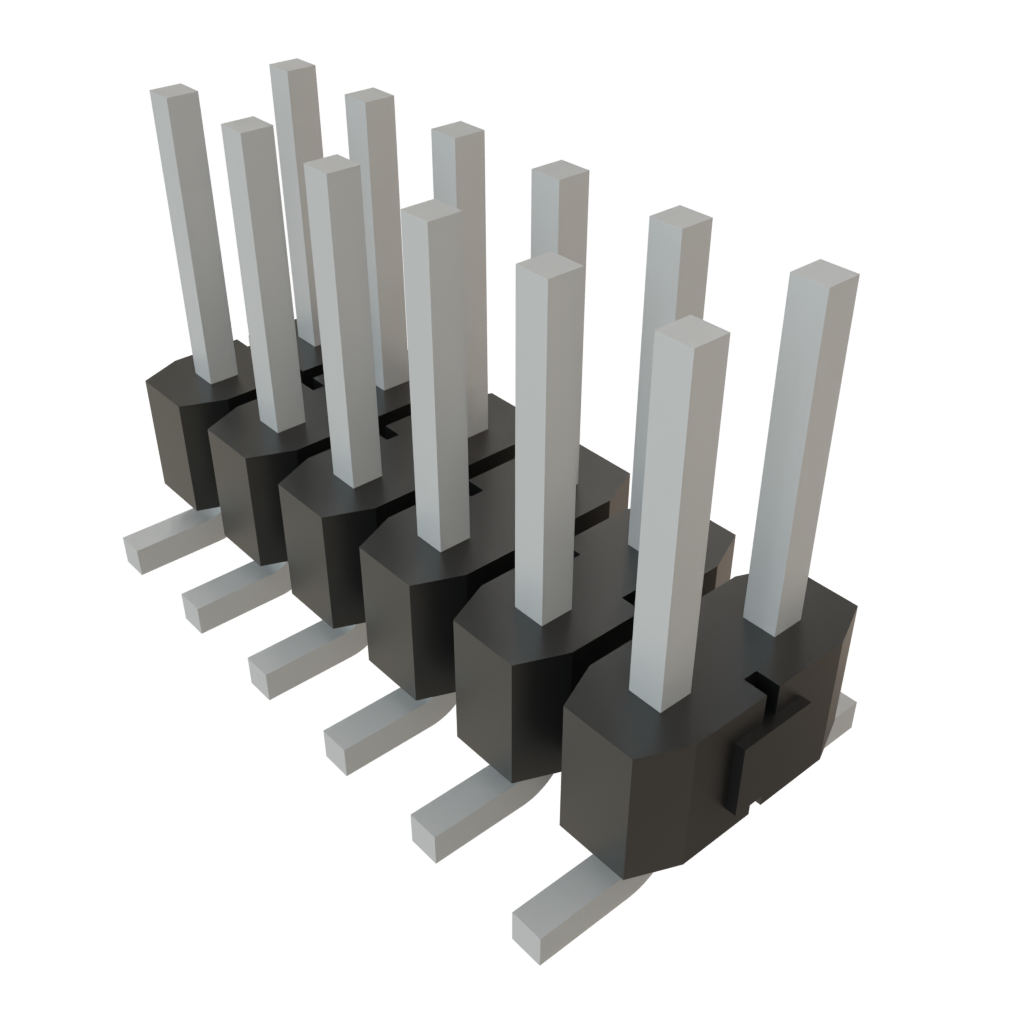

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10601TDVA

Mfr. No:

TSM-106-01-T-DV-A

Mfr.:

Samtec

Description:

Headers & Wire Housings .100" Surface Mount Terminal Strip

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSM-106-01-T-DV-A

Add To Project

Add Notes

In Stock: 106

Stock:: 106 Can Dispatch Immediately

An unexpected error occured.Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Minimum: 1 Multiples: 1

Enter Quantity:

Unit Price:

-,-- Ft

Ext. Price:

-,-- Ft

Pricing (HUF)

Qty.	Unit Price	Ext. Price
	541,35 Ft	541,35 Ft
	417,04 Ft	47 542,56 Ft
	382,96 Ft	203 734,72 Ft
	351,68 Ft	360 823,68 Ft
	325,21 Ft	654 972,94 Ft
	291,93 Ft	1 464 320,88 Ft
	282,71 Ft	2 836 146,72 Ft

Products found:

To show similar products, select at least one checkbox

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
REACH - SVHC:
Product:	Headers
Type:	Unshrouded
Number of Positions:	12 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Mating Post Length:	5.84 mm (0.23 in)
Series:	TSM
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	4.1 A to 5.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	38
Subcategory:	Headers & Wire Housings
Voltage Rating:	495 VAC
Unit Weight:	238,320 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

TSM .100" (2.54mm) SMT .025" (0.635 mm) Square Post Headers

Samtec TSM .100" (2.54mm) Surface Mount .025" (0.635 mm) Square Post Headers are board-to-board connectors featuring square post terminals in single, double, or triple-row options with straight, right-angle or mixed technology pins. The highly reliable, rugged headers are available in vertical and horizontal orientations which have passed 10-years in mixed flowing gas (MFG) environments. The Samtec TSM headers achieve high mating cycles of up to 2500. Popular mating connectors of the TSM series are the SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, and HLE series. Cable mates include the IDSS and IDSD series.
