UCC28910DR

Name: Texas Instruments UCC28910DR
Brand: Texas Instruments
SKU: 595-UCC28910DR
Price: 489.22 HUF
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

595-UCC28910DR

Mfr. No:

UCC28910DR

Mfr.:

Texas Instruments
Texas Instruments

Description:

Switching Controllers MCM- Primary Side FB A 595-UCC28910D

Datasheet:

UCC28910DR Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Texas Instruments UCC28910DR

In Stock: 2 442

Stock:: 2 442 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- Ft

Ext. Price:

-,-- Ft

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 2500)

Cut Tape

MouseReel™ (+1 940,00 Ft)

Pricing (HUF)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	489,22 Ft	489,22 Ft
	355,29 Ft	3 552,90 Ft
	324,01 Ft	8 100,25 Ft
	287,12 Ft	28 712,00 Ft
	269,87 Ft	67 467,50 Ft
	259,45 Ft	129 725,00 Ft
	250,63 Ft	250 630,00 Ft
Full Reel (Order in multiples of 2500)
	241,80 Ft	604 500,00 Ft
	230,17 Ft	1 726 275,00 Ft

† A MouseReel™ fee of 1 940,00 Ft will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

Alternative Packaging

Mfr. Part No.:

UCC28910D

Packaging:

Tube

Availability:

In Stock

Price:

577,44 Ft

Min:

Similar Product

Mfr.:

Texas Instruments

Mfr. No:

UCC28910D

Description:

Switching Controllers 700V Flyback Switche r A 595-UCC28910DR

Compare With Current Part

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	Switching Controllers
RoHS:
Topology:	Buck, Flyback
Number of Outputs:	1 Output
Switching Frequency:	115 kHz
Duty Cycle - Max:	99 %
Output Voltage:	5 V
Output Current:	1.26 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package/Case:	SOIC-7
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Isolation:	Isolated
Moisture Sensitive:	Yes
Output Power:	9.5 W
Product:	Switching Controllers
Product Type:	Switching Controllers
Series:	UCC28910
Shutdown:	Shutdown
Factory Pack Quantity:	2500
Subcategory:	PMIC - Power Management ICs
Unit Weight:	254 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

UCC28910DR Datasheet

Application Notes

Non-Isolated High-Side Buck Converter With UCC28910

Images

This functionality requires JavaScript to be enabled.

TARIC:: 8542399000
CNHTS:: 8542399000
CAHTS:: 8542310000
USHTS:: 8542310030
JPHTS:: 854239099
MXHTS:: 8542399901
ECCN:: EAR99

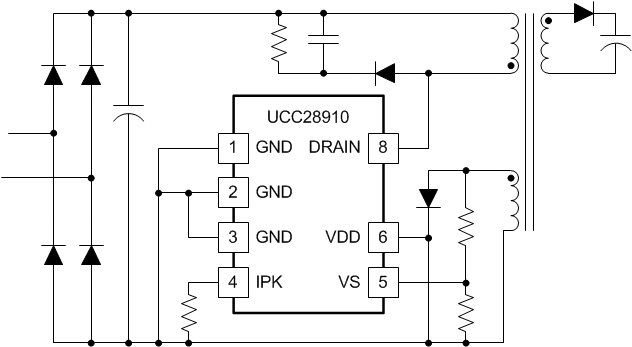

UCC2891x High-Voltage Flyback Switcher

Texas Instruments UCC2891x High-Voltage Flyback Switcher is dedicated to isolated flyback power supplies and provides output voltage and current regulation without the use of an optical coupler. The device incorporates a 700V power FET and a controller that processes operating information from the auxiliary flyback winding and from the power FET to provide precise output voltage and current control. The integrated high-voltage current source for a startup that is switched off during device operation and the controller current consumption that is dynamically adjusted allows very low standby power. Control algorithms in the Texas Instruments UCC2891x, combining switching frequency and peak primary current modulation, allow operating efficiencies to meet or exceed applicable standards. Discontinuous conduction mode (DCM) with valley switching is used to reduce switching losses. The maximum switching frequency is 115kHz. Protection features help to keep secondary and primary component stress levels in check across the operating range.
