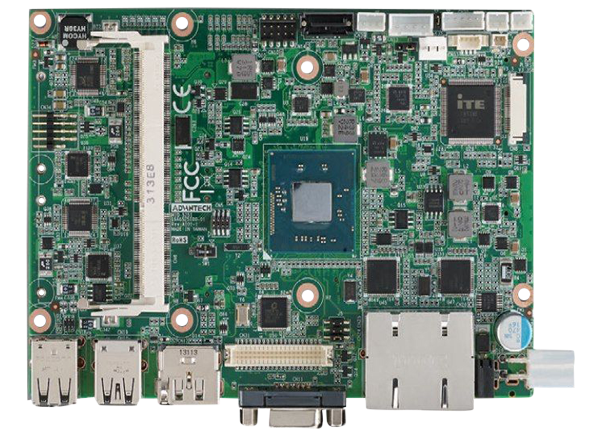

Advantech MIO-5251 3.5" MIO-Compact SBC
Advantech MIO-5251 series 3.5" MIO-Compact SBC with Intel Celeron J1900 & Atom E3825 processors support up to 8GB DDR3L-1066/1333MHz SODIMM, DirectX11, OpenGL3.2, OpenCL1.2, VGA+LVDS, eDP+HDMI, and DP. It also includes 2 Intel i210 GbE, rich I/O, 4 COM, SATA, USB 3.0, SMBus/I2C, GPIO full-size Mini PCIe w/ SIM holder and full-size mSATA or SD card. The MIO-5251 also supports iManager, SUSIAccess, and embedded software APIs.
Features
- Intel® Celeron J1900 & Atom E3825, DDR3L-1066/1333MHz SODIMM up to 8GB
- DirectX11, OpenGL3.2, OpenCL1.2, multi-display: VGA+LVDS/eDP+ HDMI/ DP*
- Flexible design using integrated multiple I/O: MIOe to approach vertical applications & keep domain knowhow
- 2 Intel i210 GbE, rich I/O: 4COM, SATA, USB3.0, SMBus/I2C, GPIO full-size Mini PCIe w/ SIM holder, full-size mSATA or SD card
- Supports iManager, SUSIAccess, and Embedded Software APIs
