Microchip Technology PIC32MX 32-bit Microcontrollers
Microchip Technology PIC32MX 32-bit Microcontrollers (MCUs) combines 32-bit performance with a large memory configuration and rich integrated peripheral set at a low cost to address embedded application space ranging from simple general-purpose embedded control to more advanced audio, connectivity, and graphical embedded applications.
Features
- MIPS32 M4K® Core with up to 120MHz/150DMIPS
- Up to four SPI/I2S interfaces for audio processing and playback
- USB device/host/OTG
- CAN 2.0B with 1Mbps bit rates for industrial/automotive applications
- Enhanced Parallel Master Port (PMP) for graphics or external memory
- Support for mTouch® capacitive touch buttons and sliders
- Up to five UARTs, three analog comparators and two I2C buses
- 10-bit, 1Msps, up to 48-channel ADC
- Peripheral Pin Select (PPS) allows function remapping
- Temperature range: -40°C to 105°C
Videos
PIC32MX1/MX2/MX5 Series
Microchip Technology PIC32MX1, PIC32MX2, and PIC32MX5 microcontrollers offer a rich peripheral set at a low cost for a wide range of embedded designs that require complex code and higher feature integration. These MCUs deliver up to 50MHz/83 DMIPS performance and provide up to 512KB Flash and 64KB RAM options. The PIC32MX1, PIC32MX2, and PIC32MX5 microcontrollers feature including SPI/I2S™, mTouch® capacitive touch sensing, and an enhanced Parallel Master Port (PMP). These microcontrollers also feature Controller Area Network (CAN) 2.0B with DeviceNet™ addressing support, a 10-bit, 1Msps, 48-channel Analog-to-Digital Converter (ADC), and a full-speed USB 2.0 device/host/OTG module. To maximize data throughput, each MCU includes four general-purpose Direct Memory Access (DMA) controllers and two dedicated DMA controllers on each CAN and USB module.
Features
- MIPS32 M4K Core with up to 50MHz/83DMIPS
- Up to four SPI/I2S interfaces for audio processing and playback
- Up to five UARTs, three analog comparators, and two I2C buses
- CAN 2.0B with 1Mbps bit rates for industrial/automotive applications
- USB device/host/OTG
- Enhanced PMP for graphics or external memory
- 10-bit, 1Msps, up to 48-channel ADC
- PPS allows function remapping
- −40°C to 105°C temperature range
PIC32MX1/MX2 XLP Series
Microchip Technology PIC32MX1 and PIC32MX2 eXtreme Low Power (XLP) Microcontrollers bring increased performance at lower operating, sleep, and deep sleep currents. These microcontrollers run up to 72MHz/116DMIPS and provide 128K/32K, 256K/64K Flash/RAM options. The PIC32MX1 and PIC32MX2 XLP MCUs boast a rich set of integrated peripherals including two SPI/ I2S interfaces for audio codecs, mTouch capacitive touch-sensing, and an 8-bit Parallel Master Port (PMP) for graphics or external memory. These microcontrollers also feature a 1Msps Analog-to-Digital Converter (ADC) supporting up to 13 channels and a full-speed USB 2.0 device/host/OTG. The PIC32MX1 and PIC32MX2 XLP microcontrollers are coupled with software and tools to launch connectivity, graphics, BLUETOOTH® enabled digital audio, and general-purpose embedded control.
Features
- MIPS32 M4K core at 72MHz
- XLP sleep and deep sleep operating modes
- Two SPI/I2S interfaces for audio processing and playback
- Analog comparators, UARTs, PMP, and I2C
- USB device/host/OTG
- 10-bit, 1Msps, 13-channel ADC
- PPS for digital pin remapping
- −40°C to 105°C temperature range
PIC32MX3/MX4 Series
Microchip Technology PIC32MX3 and PIC32MX4 microcontrollers offer the perfect combination of 32-bit performance, memory, and integrated peripherals at a low cost. These microcontrollers run up to 120MHz/150 DMIPS and provide 64K/16K, 128K/32K, 256K/64K, and 512K/128K Flash/RAM options. The PIC32MX3 and PIC32MX4 microcontrollers boast a rich set of integrated peripherals including two SPI/ I2S interfaces for audio codecs, mTouch capacitive touch-sensing, and an on-board, 28-channel. These microcontrollers also feature an 8-bit Parallel Master Port (PMP) for graphics or external memory, 1Msps Analog-to-Digital Converter (ADC), and full-speed USB 2.0 device/host/OTG. These microcontrollers are coupled with software and tools to launch products in connectivity, graphics, bluetooth-enabled digital audio, and general-purpose embedded control.
Features
- MIPS32 M4K core at 120MHz/150DMIPS
- Two SPI/I2S interfaces for audio processing and playback
- Analog comparators, UARTs, PMP, and I2C
- USB device/host/OTG
- 10-bit, 1Msps, and 28-channel ADC
- PPS for digital pin remapping
- −40°C to 105°C temperature range
PIC32MX5/MX6/MX7 Series
Microchip Technology PIC32MX5, PIC32MX6, and PIC32MX7 microcontrollers offer integrated 10/100Mbit Ethernet MAC and industry-leading connectivity and peripheral options, enabling developers to build embedded connectivity-based applications. These MCUs are fully supported by the MPLAB Harmony integrated software framework, which features software solutions to accelerate application development.
Features
- 80MHz/105DMIPS performance
- Up to 512KB Flash and up to 128KB RAM
- Integrated 10/100Mbps Ethernet MAC
- Dedicated DMA interface for direct access to the entire system RAM
- Industry-standard RMII/MII interface to PHY
- Pre-programmed MAC address
- Full speed USB, CAN 2.0B
- Rich peripheral set
Development Tools
Microchip Technology PIC32MX274 XLP Starter Kit (DM320105)
32-bit development platform featuring the high-performance PIC32MX274 MIPS MCU.
Microchip Technology TCHIP005 ChipKIT® Lenny Development Board
Multiple capabilities over the Arduino Leonardo, provided by the device's 32-bit microcontroller.
Microchip Technology Curiosity PIC32MX470 Development Board (DM320103)
Fully integrated development platform for the Microchip PIC32MX470 Microcontroller.

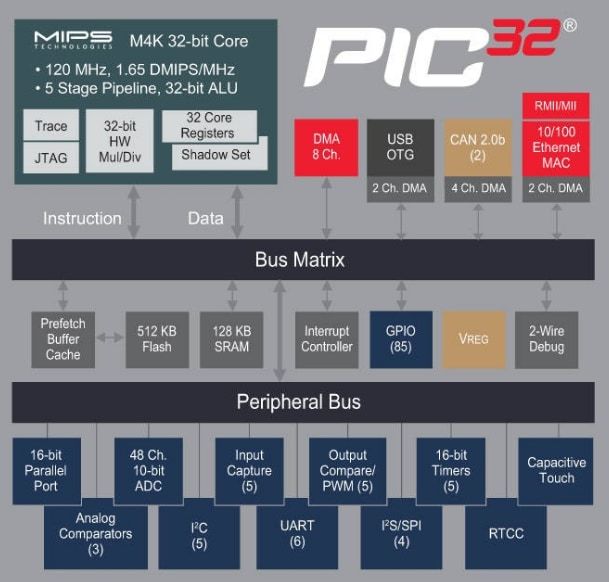

Block Diagram
