onsemi C-Series Array SiPM Sensors

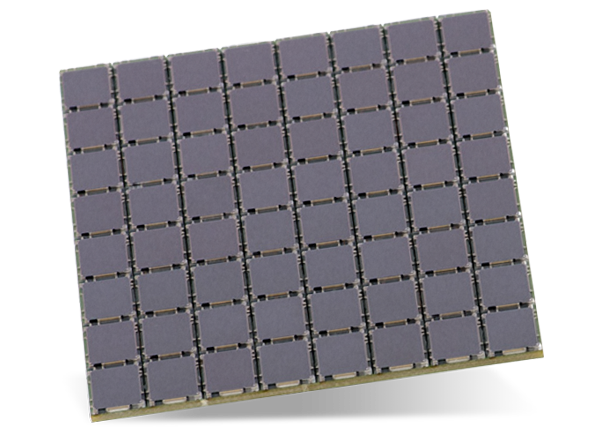

onsemi C-Series Array Silicon Photomultiplier (SiPM) Sensors are used to create compact and scalable arrays. The MLP-packaged sensors are mounted onto PCB boards with minimal dead space and are available in a variety of formats, formed of sensors of either 1mm, 3mm, or 6mm. The back of each Array-C has either multi-way connectors or a ball grid array (BGA), to give access to the fast and standard outputs, and a common I/O from the summed substrates of the pixels.
Features
- 4-Side scalable arrays
- Variety of formats ranging from 2×2 to 12×12 arrays
- Minimal dead space at the edges, allowing tiling on all sides to allow the creation to still larger detection areas
- Each array has either a multi-way connector or BGA on the reverse for access to all signals
- The ARRAYC-60035-4P-BGA does not have fast outputs
- The pixel signals can either be read out individually for imaging applications or summed by the user to create a large area, single-channel sensor
- Pixel-level performance exactly as individual C-Series sensors
- Optional evaluation boards available for easy access to signals
Applications
- Medical imaging
- Hazard and threat
- 3D Ranging and sensing
- Biophotonics and sciences
- High energy physics
Associated Product
onsemi Silicon Photomultipliers (SiPMs)
Feature high-gain, fast timing, and excellent PDE with practical advantages associated with SST.
Associated Development Tools
onsemi ARRAYX-BOB6-64P Evaluation Board
Allows for easy access to all the signals of an ARRAYC-60035-64P, 6mm 8x8 SiPM array.
onsemi ARRAYX-BOB3-144P Evaluation Board
Allows for easy access to the signals from an ARRAYC-30035-144P, 3mm 12x12 SiPM array.
onsemi ARRAYX-BOB3-16P Evaluation Board
Allows easy access to the signals from an ARRAYC-30035-16P, 3mm 4x4 SiPM array.
onsemi ARRAYX-BOB3-16S Evaluation Board
Allows easy access to the sum of the standard pixel signals of an ARRAYC-30035-16P SiPM array.
