SparkFun Qwiic ToF Imager - VL53L5CX

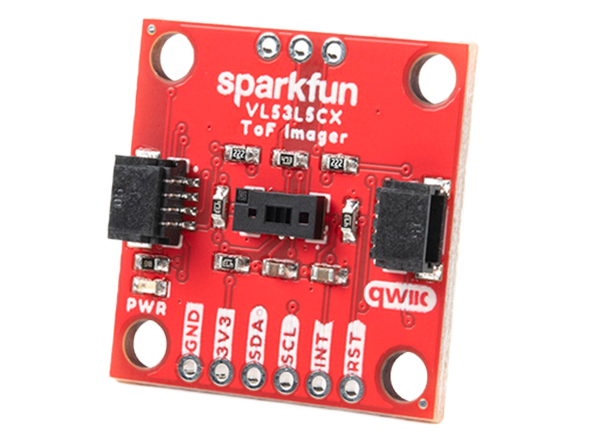

SparkFun Qwiic ToF Imager is a 64-pixel Time-of-Flight (ToF) 4-meter ranging sensor built around the VL53L5CX. The chip integrates a SPAD array, physical infrared filters, and diffractive optical elements (DOE). This achieves performance in various ambient lighting conditions with a range of cover glass materials. It utilizes the Qwiic system, so no soldering is required to connect to the rest of the system. There is also a broken-out 0.1"-spaced pins to use a breadboard.

Features

  • Multizone ranging output with either 4x4 or 8x8 separate zones
  • Autonomous Low-power mode with interrupt programmable threshold to wake up the host
  • Up to 400cm ranging
  • Emitter 940nm invisible light Vertical-Cavity Surface-Emitting Laser (VCSEL) and integrated analog driver
  • 60Hz frame rate capability
  • 63° diagonal square FoV using Diffractive Optical Elements (DOE) on both transmitter and receiver
  • Operating voltage 3.3V
  • I2C Address 0x52
  • 2x Qwiic connectors

Additional Resource

Related Products

VL53L5CX 8x8 Multi-Zone Time-of-Flight Sensor

STMicroelectronics VL53L5CX 8x8 Multi-Zone Time-of-Flight Sensor

Integrates a SPAD array, physical infrared filters, and DOE in a miniature reflowable package.
