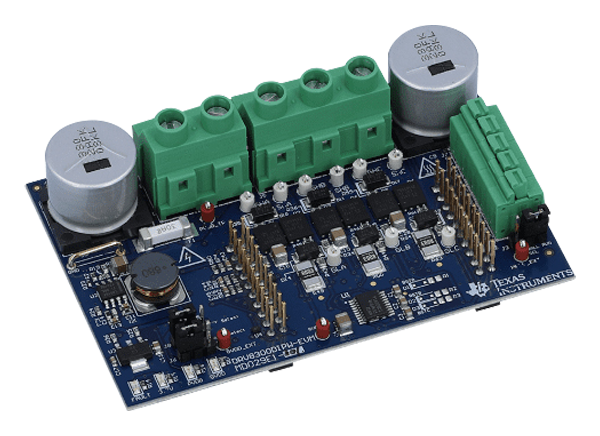

Texas Instruments DRV8300xxx-EVM Evaluation Modules
Texas Instruments DRV8300xxx-EVM Evaluation Modules are designed to be evaluated only with the LAUNCHXL-F280049C MCU PCB, which must be ordered separately. The 3.3VDC power to the LAUNCHXL-F280049C is provided from the DRV8300Dxx-EVM. The C2000 launchpad (LAUNCHXL-F280049C) is required for this kit and is used to control the DRV8300 as well as monitor and report faults.
Features
- 6 to 100V Operation, 30A peak H-Bridge output current
- Onboard CSAs for three-phase low-side current measurement
- Onboard buck for GVDD generation and device internal bootstrap diodes
- Supply LEDs, fault LEDs, and temperature sensor for user feedback
- C2000 (LAUNCHXL-F280049C) sensored trapezoidal firmware available
Board Overview
Related Product
Texas Instruments DRV8300U Three-Phase Gate Driver
Three half-bridge gate drivers, capable of driving high-side and low-side N-channel power MOSFETs.
Texas Instruments DRV8300/DRV8300-Q1 3-Phase Gate Drivers
Provides three half-bridge gate drivers, each driving high-side & low-side N-channel power MOSFETs.
Associated Dev Kit
Texas Instruments LAUNCHXL-F280049C LaunchPad Development Kit
Low-cost evaluation and development tool for the Piccolo F28004x series (including InstaSPIN-FOC).
